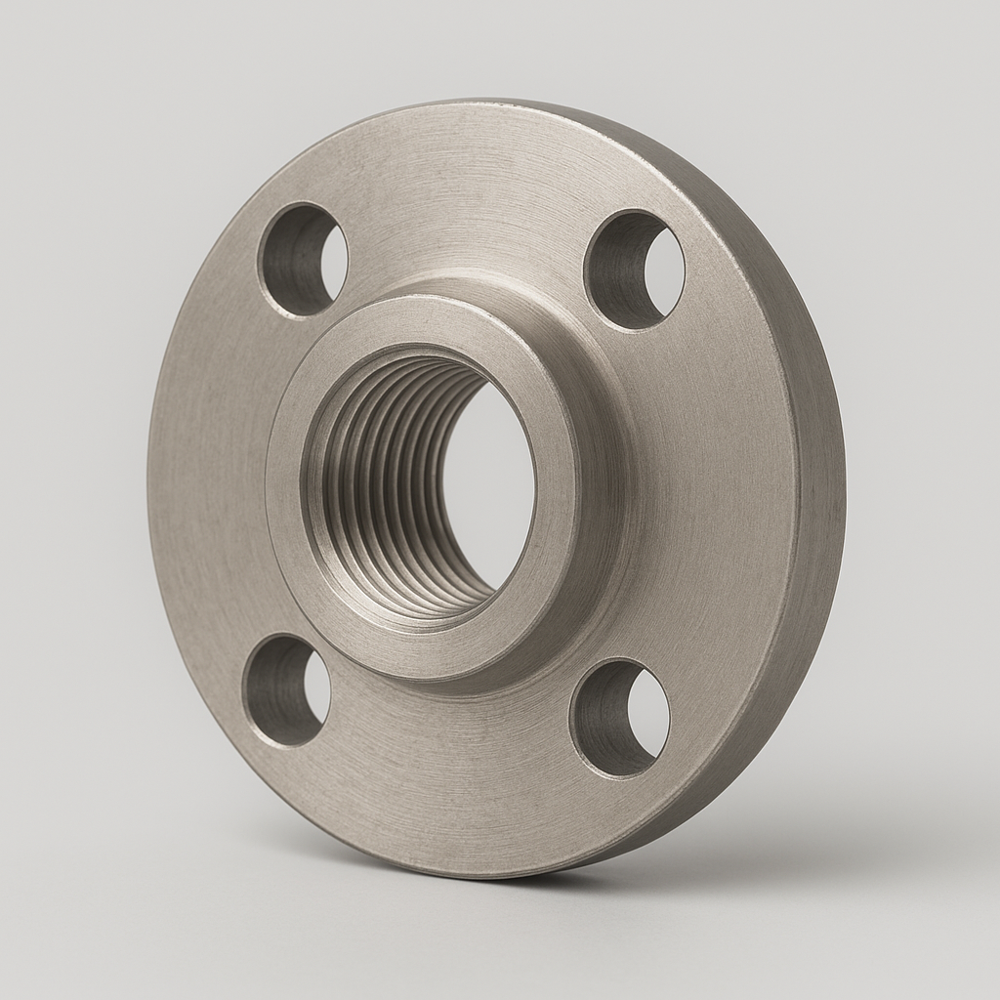

Threaded flange

About Threaded flange

The Threaded Flange is designed for pipelines where welding is not practical or desirable. With internal threads (BSP/NPT), the flange can be screwed directly onto externally threaded pipes, making it ideal for low-pressure and non-critical applications. Induskart supplies forged threaded flanges manufactured from Carbon Steel, Mild Steel, and Stainless Steel, conforming to ANSI B16.5 standards. These flanges are easy to install, reliable, and widely used in utility services, fire-fighting systems, and small-diameter pipelines.

Technical Specifications:

• Material Grades: ASTM A105 (CS), IS2062 (MS), ASTM A182 F304/F316 (SS)

• Type: Threaded Flange (Screw-On)

• Standard: ANSI B16.5 / ASME B16.47 / DIN EN 1092-1

• Thread Types: BSP, BSPT, NPT

• Size Range: to 12

• Pressure Ratings: Class 150, 300

• Face Type: Flat Face (FF) / Raised Face (RF)

• Manufacturing Method: Forged & CNC Machined

• Surface Finish: Machined, Rust Preventive Oil Coated

• Testing: Hydrostatic, Dimensional, MTC available

Certifications:
ISO 9001: 2015, Mill Test Certificate (MTC), IBR (on request)

Applications & Buyer Types:

• Low-pressure pipelines

• Firefighting and utility systems

• Air and water pipelines

• Marine & shipbuilding

• Suitable for EPC contractors, OEMs, and maintenance engineers.

FAQ:

1. What is the main advantage of a threaded flange?
   Allows quick assembly without welding.

2. Are threaded flanges suitable for high pressure?
   No, best for low-pressure systems.

3. Which thread standards are available?
   BSP, BSPT, and NPT.

4. Do threaded flanges require welding at all?
   Optional tack welds can be applied for added safety.

Call to Action:
Contact Induskart for cost-effective threaded flanges and expert sourcing support for your piping projects.
