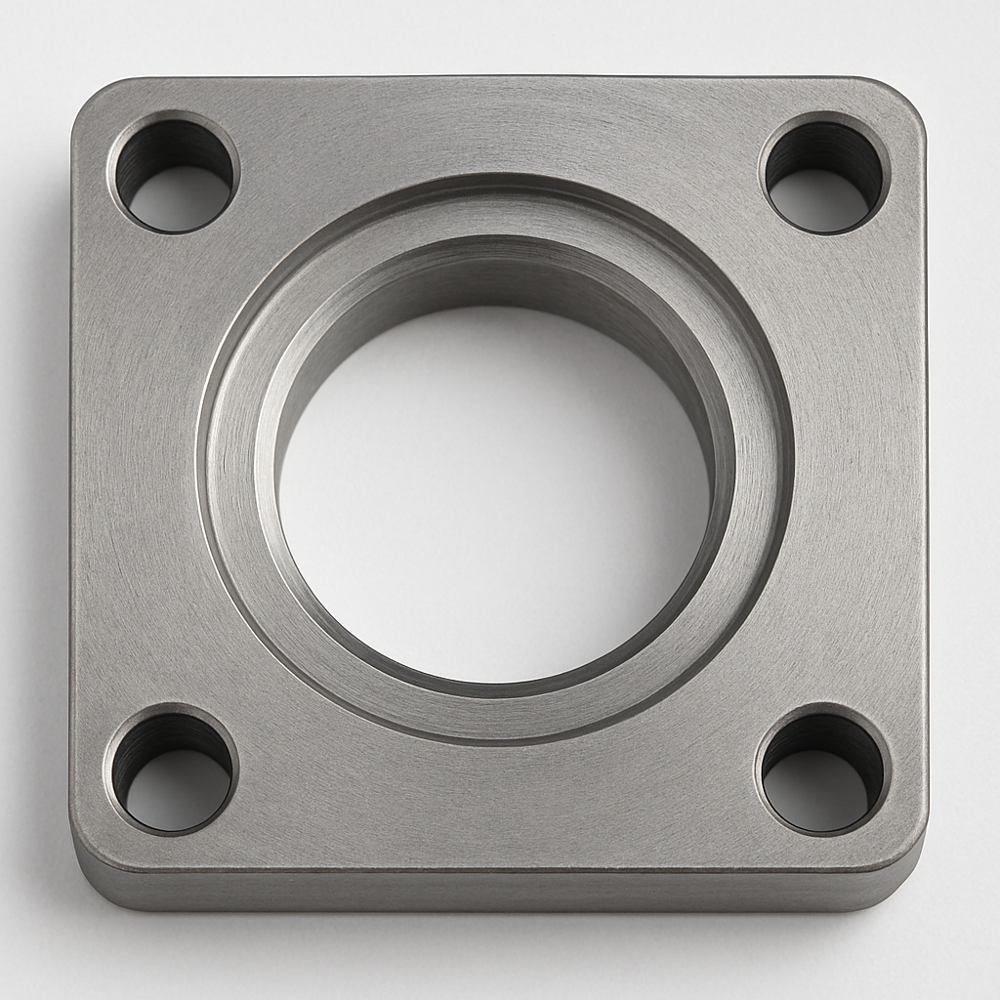

Square Flange

About Square Flange

Square Flanges are compact flanges designed for hydraulic and pneumatic pipeline systems where space is limited. Manufactured in accordance with JIS B2291 / ISO standards, these flanges are forged from Carbon Steel, Mild Steel, or Stainless Steel to withstand high-pressure conditions. Square flanges are widely used in hydraulic lines, shipbuilding, and machine tool piping because of their robust design, easy installation, and reliable leak-proof performance.

Technical Specifications:

• Material Grades: ASTM A105 (CS), IS2062 (MS), ASTM A182 F304/F316 (SS)

• Type: Square Flange (Single, Double, and Split types)

• Standard: JIS B2291 / ISO 6164

• Size Range: to 6 (DN 15 to DN 150)

• Pressure Ratings: 210 Bar, 280 Bar, 350 Bar (Hydraulic Standards)

• Face Type: Flat Face (FF) / O-ring Groove Type

• Manufacturing Method: Forged, Heat Treated & CNC Machined

• Surface Finish: Machined, Zinc Plated, or Anti-Rust Coating

• Testing: Hydrostatic, PMI, Dimensional, MTC available

Certifications:
ISO 9001: 2015, Mill Test Certificate (MTC), Third-Party Inspection (on request)

Applications & Buyer Types:

• Hydraulic & Pneumatic Systems

• Shipbuilding Industry

• Machine Tool Manufacturing

• Power Plants & Refineries

• Construction Machinery

• Buyers include OEMs, Hydraulic Equipment Manufacturers, and Maintenance Teams.

FAQ:

1. What is the main use of a square flange?
   Used in hydraulic systems for compact, high-pressure piping connections.

2. Are square flanges interchangeable with round flanges?
   No, they are specific to hydraulic piping standards.

3. Do square flanges require O-rings?
   Yes, O-rings are used for sealing in hydraulic lines.

4. Which industries prefer square flanges?
   Shipbuilding, hydraulic, and heavy machinery industries.

Call to Action:
Choose Induskart for high-quality square flanges built for precision hydraulic and industrial piping systems.
